WX017

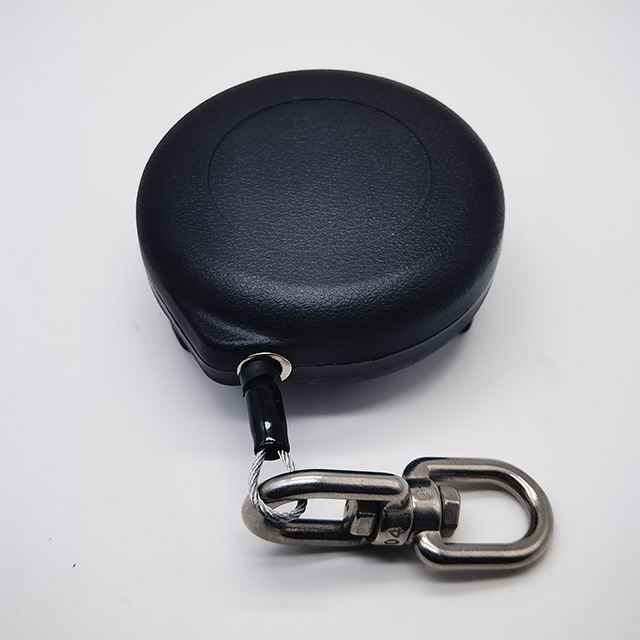

WX017 is a circular strong retractable pull box composed of PP, adjustable strong spring and stainless steel wire.This product has larger and stronger shell and stronger internal spring provide very large retraction force and load-bearing. WS017 is mainly used in factory suspension system, tool suspension, outdoor climbing and other scenes requiring high-strength retraction equipment.
Product Characteristics
1. Ultrasonic welding, the box body and stainless steel wire rope are highly load-bearing.
2. Long service life.
3. The retraction force can be adjusted within a certain range, also for the length of steel wire rope.
4. Provide appearance, color, function and logo highly customized services
5. Huge application scope and development potential.
Data Sheet
Product name | Retail Security Anti-theft Retractable Display pull box recoiler |
Material | ABS + Steel spring+ Stainless steel wire |
Size | 85*30mm |
Color | Black(standard) |
Cable Dia | 2.5mm(standard) |
Retractable length | 125cm（standard） |
Initial retractable force | 400g（10~15cm） |
Retraction force | 200KG+(static state) |
Working life | 80000~100000 times |
Pause Function | Yes |
Matching connector | Stainless steel 8-shaped mountaineering buckle（standard） |
Packing information:
Product Packaging: Poly Bag
Shipping Packaging: Neutral Carton
Packing List:
1 sets pullbox/bag
Packing parameter:
CTN:50*35*20cm
48/CTN
12.0KG
